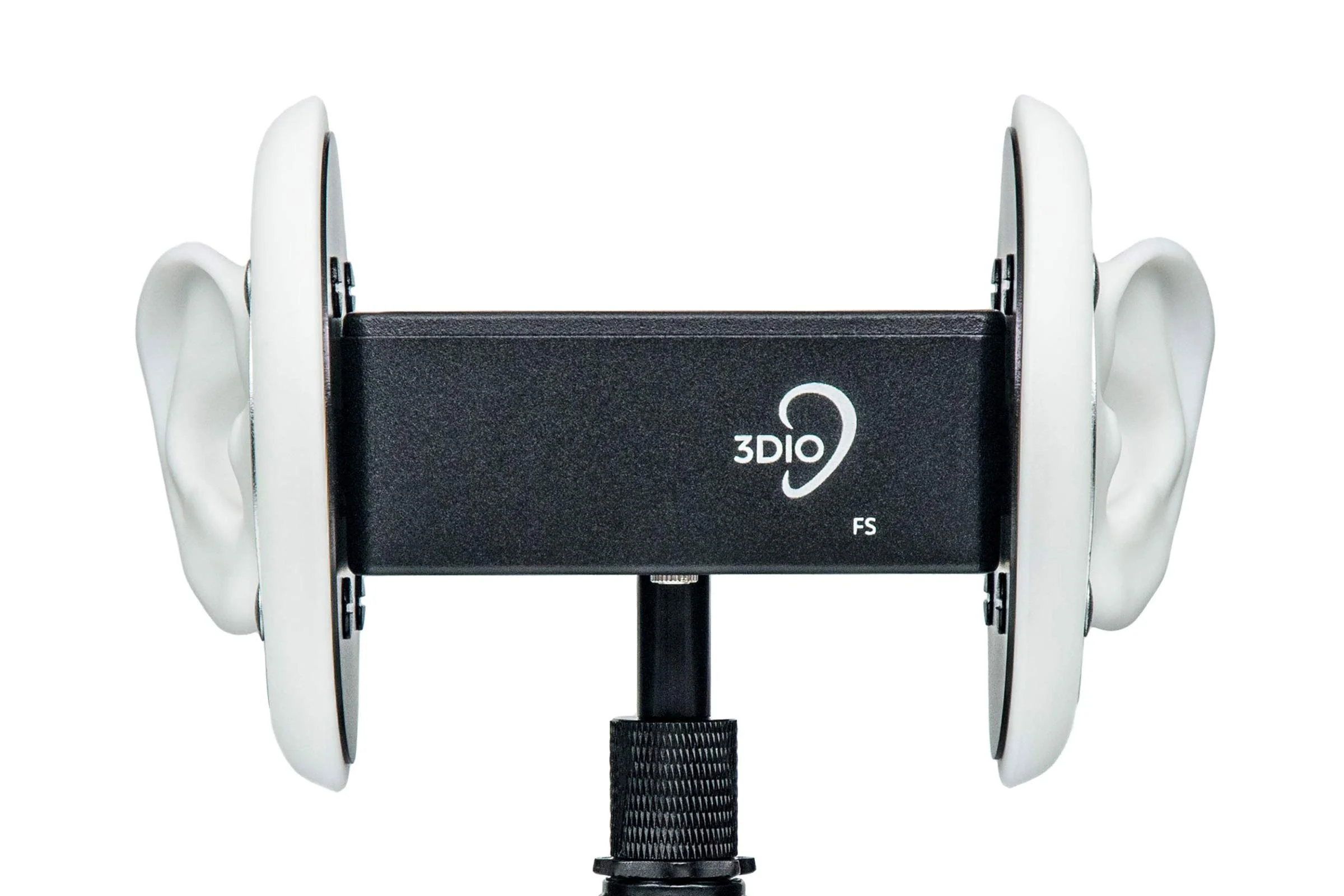

The 3Dio FS Binaural Microphone is the world’s most popular 3D microphone for ASMR, VR virtual reality, field recording and recording studios. Used all over the world by hobbyists and professional recording engineers alike, 3Dio binaural microphones are a must-have for anyone looking for the best in 3D audio capturing.

The FS binaural microphone is also the most affordable, high-quality binaural microphone on the market. The integrated microphone capsules are extremely sensitive and quiet. The capsules have a very natural presence, perfect for binaural recordings. The FS delivers portable, professional quality binaural in the palm of your hand. It has a very warm and solid response in the low to mid-range frequencies. This brings out the punch as well as provides low-end support for bass-heavy sounds. The frequency response of the capsules used in the FS rolls off slightly above 10 kHz, which is excellent for recording instruments with loud high frequencies like drum cymbals or strummed acoustic guitars. It also prevents any harsh effects that are sometimes associated with binaural recordings using smaller capsules.

The microphone works well in windy conditions even without protection. Wind sounds realistic without affecting the binaural experience or overloading the microphones.

What is Binaural?
Binaural is a recording technique that involves capturing sound using a stereo binaural microphone that is shaped and configured like two human ears. The 3Dio FS binaural microphone is a special stereo microphone that contains two prosthetic, human-shaped ears with microphone capsules embedded inside each ear canal. Binaural microphones capture audio the same way your real ears hear sounds. Incoming sound waves are changed by the ear-shaped pinna of the microphone, just like your ears would change the incoming sound waves. Our brains understand these changes as directional cues that allow us to pinpoint precise locations of any given sound. When you listen to binaural recordings using headphones, the result is a natural three-dimensional sound that gives the listener the sensation of being in the space where the audio was recorded as well as the sensation of facing the same direction as the microphone was during the recording.

For examples, see our Examples Page.

How does it work?

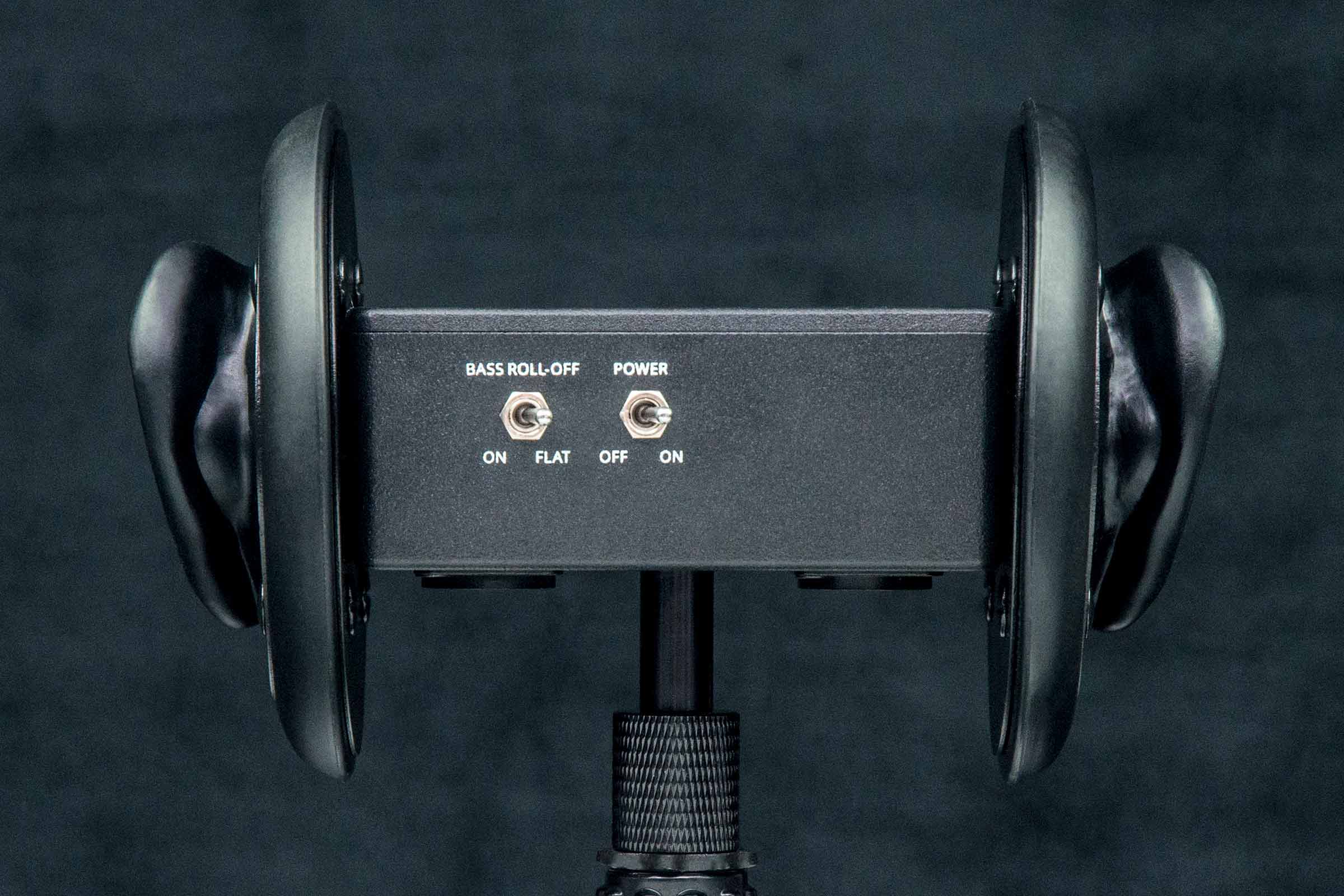

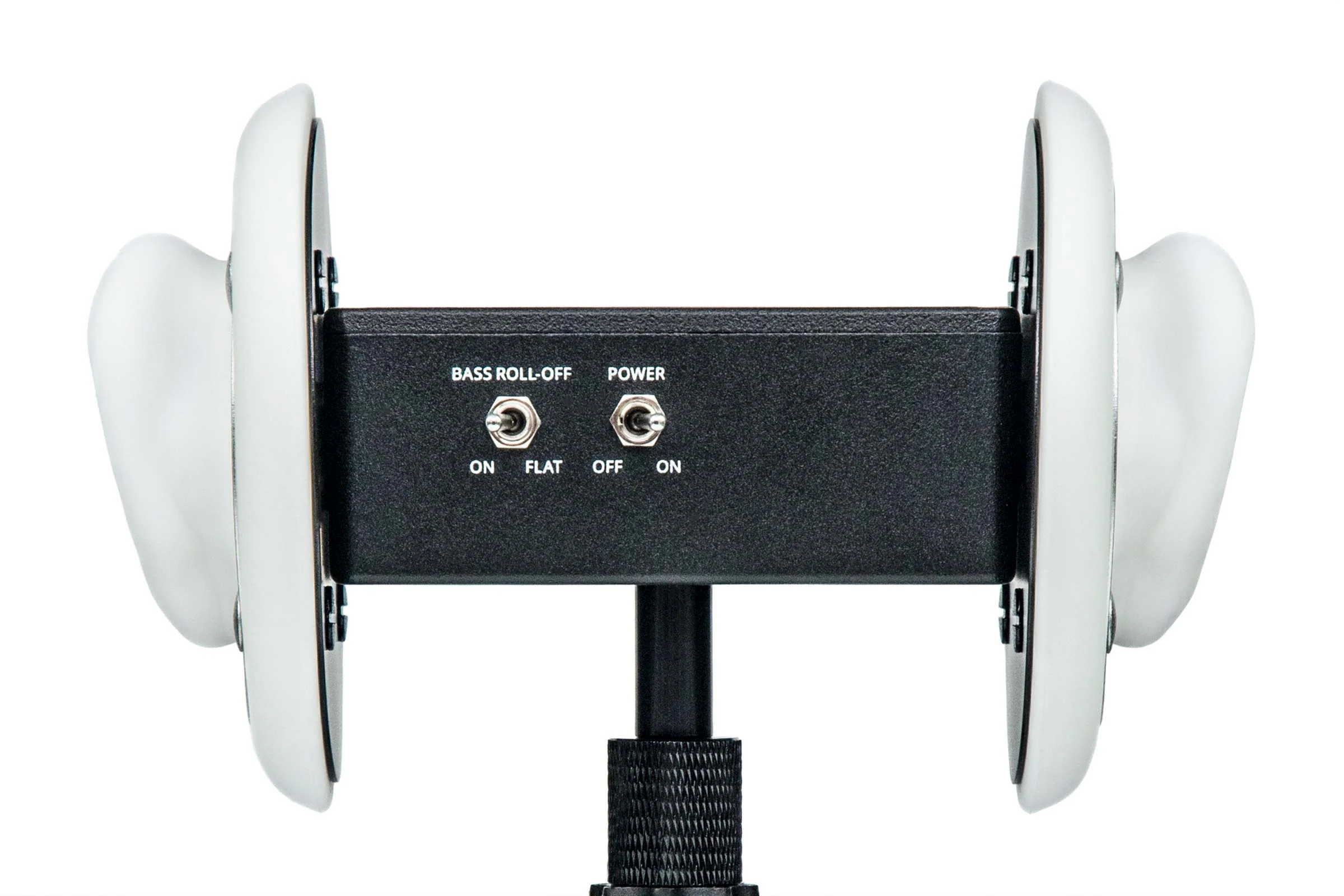

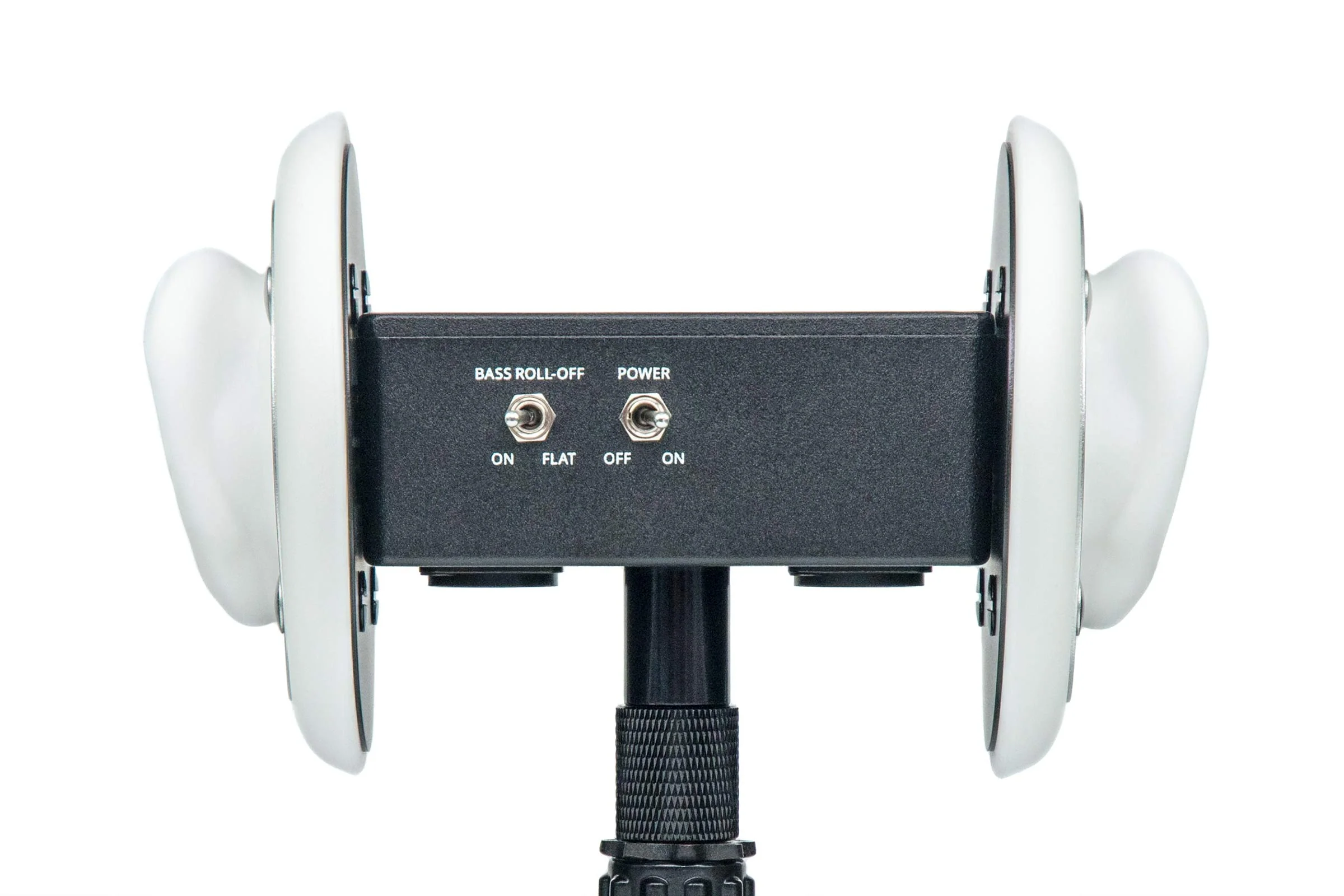

The FS binaural microphone output is an 1/8" (3.5 mm) stereo TRS, unbalanced, mic level output. It contains two matched, electret condenser microphone capsules embedded inside each ear canal and is powered by the pre-installed 9V battery. With the power switch in the ON position, the battery will last 300+ hours of continuous use. The microphone also contains a bass roll-off switch with a knee point of 160 Hz. Like most condenser microphones, the 3Dio FS requires a preamp-equipped device to boost the signal to an audible level.

Standard Output
The output of the Free Space binaural microphone is a stereo 3.5 mm (1/8") output jack providing an unbalanced, mic level signal. Simply plug it in to your favorite stereo audio recorder or microphone pre-amp, and start recording true binaural audio. This output is compatible with a 3.5 mm TRS stereo input or dual 1/4" TS unbalanced inputs.

Mounting
The Free Space comes standard with a 5/8" microphone stand adapter installed in the base. The microphone stand adapter is removable. The base of the microphone has a 1/4"-20 female thread mounting hole that can be connected to a hot-shoe adapter or used to mount directly onto a tripod or grip handle.

Battery
The Free Space contains a 9V alkaline battery within the chassis. The battery is used to power the microphone capsules for the 1/8" (3.5 mm) output only when the power switch is in the ON position. A brand new battery will provide 300+ hours of continuous use.

Microphone Capsules
The Free Space uses matched hi-sensitivity omnidirectional condenser capsules.

Carrying Case
Every FS microphone comes with a custom made, hard shell carrying case for easy transport and safe storage.

What's Included
Every Free Space microphone ships with:
- 4.5 ft long (1.5 m) 3.5 mm (1/8") TRS to dual 1/4" splitter cable
- Hard-shell carrying case
- 1/4"-20 to 5/8"-27 mic stand adapter
- Printed product manual

All Free Space microphones include the silicone ears.

Shipping, Fulfillment & Delivery
We are a small company and strive to fulfill orders as quickly as possible. During busy times, please allow up to several business days for order fulfillment. International Shipments (delivery address outside the U.S.) may be subject to import duties, value added taxes (VAT), and long customs clearance times. Tariff rates vary from country to country. 3Dio does not collect VAT on behalf of the customer. 3Dio is not responsible for payment of import taxes. Please check with your local customs agency for rates and more information.

Specifications
Dimensions: 7.5" x 4.5" x 4.5" | 190 mm x 110 mm x 110 mm (W x H x D)
Weight: 1.5 lbs | 680 g
Output: 3.5 mm (1/8") stereo jack (mic level output)

Mic Specifications
Directional Pattern	Omnidirectional
Frequency range	60 Hz - 20kHz
Sensitivity	-28 ±3 dB at 1kHz (0 dB = 1V/Pa, RL = 3.9 KΩ, Vcc=5V)
S/N Ratio	80 dB at 1 kHz
Max. SPL, peak before clipping	122 dB SPL (Typ.) at 1 kHz Distortion level 3% max
Output impedance	2.4k Ω ± 30% at 1 kHz
Operating Voltage	5V (3V ~ 10V)
Microphone diameter	10 mm (0.39 in)
