The Omni Pro has been discontinued. We are still providing support to current owners.

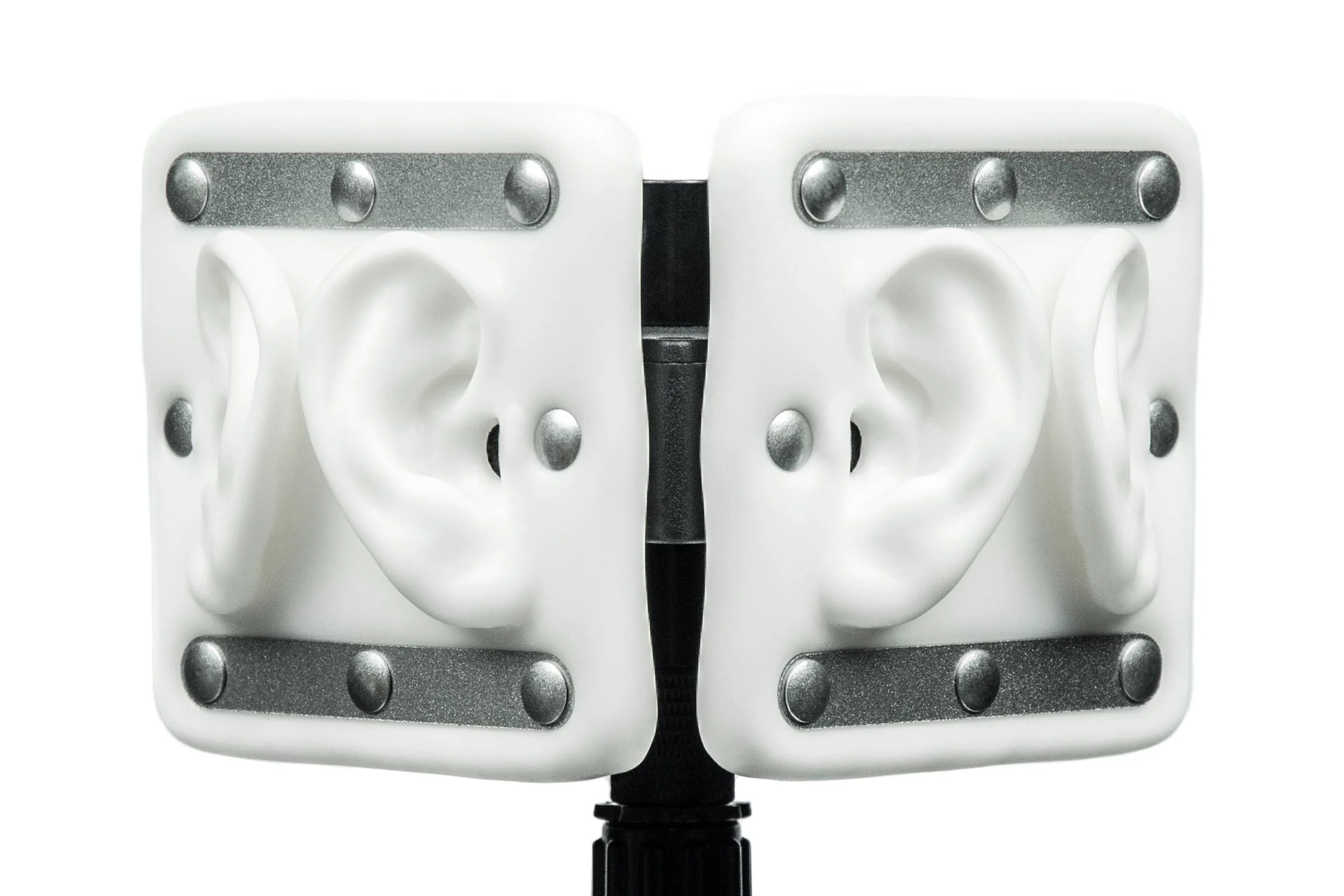

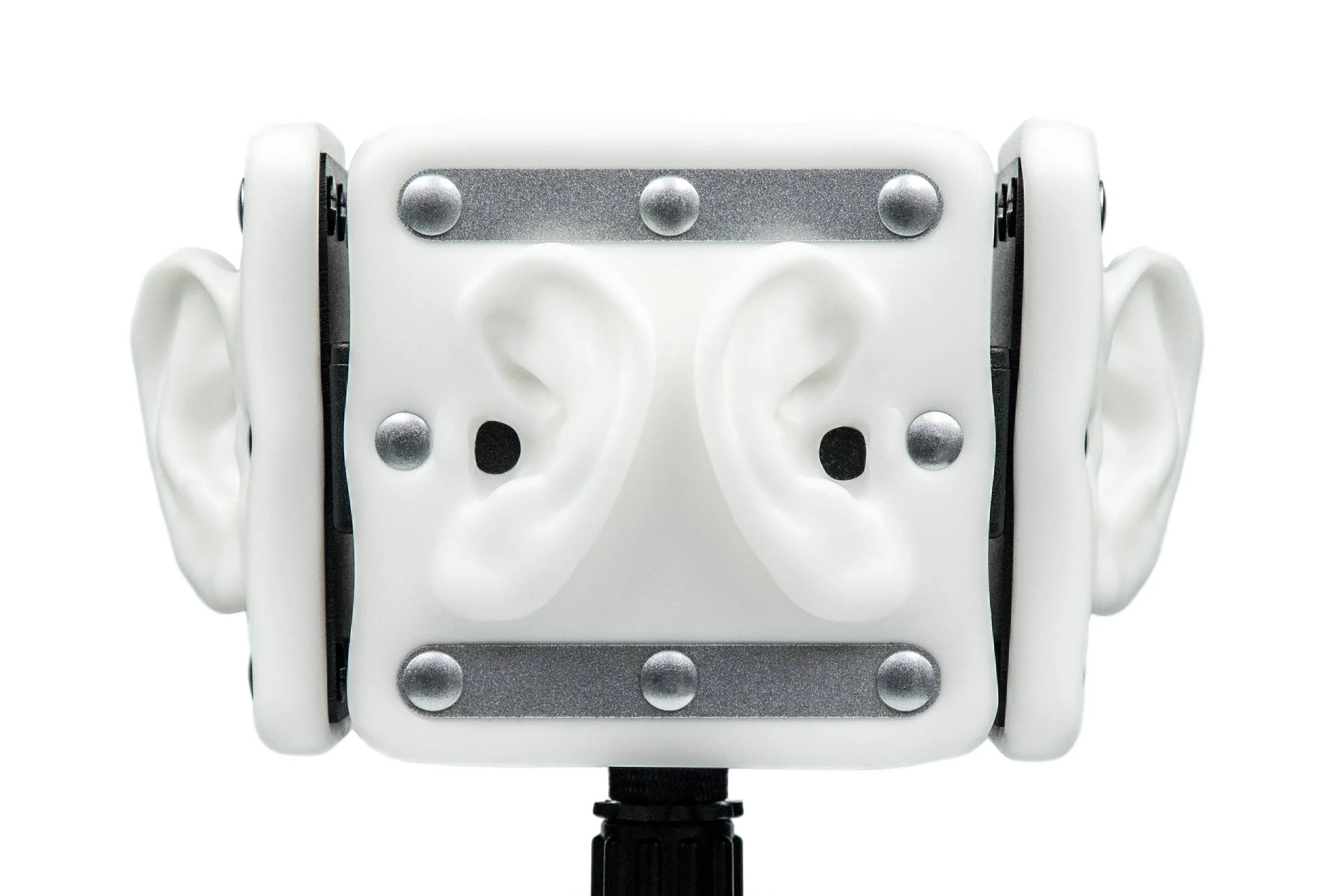

The 3Dio Omni Pro binaural microphone is specifically designed to provide professional binaural audio for Virtual Reality & 360º camera applications. It consists of 4 pairs of ears, each pointed at 90 degrees from the adjacent pair. This provides a single point, 4-position binaural perspective of any audio environment.

The 3Dio Omni Pro comes with four sets of matched, integrated DPA 4060 capsules mounted at the opening of each ear canal. The Omni Pro delivers a very sensitive and natural binaural recording. The extremely low noise floor of the DPA 4060 capsules results in a very open and dynamic binaural realism, especially during very delicate recordings. This sensitivity, coupled with the wide dynamic range of the microphone capsules, makes the Omni Pro ideally suited for professional 360° camera recordings and binaural virtual reality capture.

The 3Dio Omni Pro binaural microphone captures stereo binaural audio from 4 different directions. 0 degrees, 90, 180, and 270 degrees, corresponding to the 4 different binaural angles (ear pairs) around the microphone. The microphone is an 8-channel microphone, but it is useful to edit and mix the output of the microphone in 4 pairs of stereo binaural tracks. 90 degrees being clockwise, or 3 o'clock.

Synchronizing Omni binaural audio to a 360 video during playback only requires a simple volume control script, which is provided for download HERE (a Unity example in C#). This is typically implemented in a custom VR video player app. This particular script works directly with Unity for demonstration purposes, but can easily be ported to any other language that supports audio playback with volume control. The script plays all 4 Omni stereo binaural tracks in sync, while adjusting the volume of each based on the user's head azimuth rotation angle. The user essentially only hears a blend of 2 of the 4 tracks at any given time. The script crossfades between the Omni binaural tracks using an equal power crossfade algorithm. The download zip file also includes some example Omni binaural tracks to test with.

To record the output of the Omni Pro microphone, we recommend an 8-channel recorder with 48V phantom power on each channel.

The Omni Pro binaural microphone is ideally suited for adding immersive binaural audio to your 360 degree video production. The Omni Pro microphone can also be used to provide binaural localization/orientation freedom for audio engineers. Simply place the mic where you want it, hit record, and binaurally/positionally mix your audio sources in post.

This microphone uses the same ears and binaural technology found in the award-winning 360 degree concert experience from
Beck: Hello, Again.

Microphone Capsules
The Omni Pro binaural microphone comes standard with 8 DPA 4060 CORE hi-sensitivity microphone capsules.

Mounting
The Omni Pro binaural microphone comes standard with a 5/8" microphone stand adapter installed in the mounting base. This microphone stand adapter is removable. The mounting base of the microphone has a 1/4"-20 female thread mounting hole that can be connected to a hot-shoe adapter or used to mount directly onto a tripod or grip handle. There are two mounting bases, one on the top and one on the bottom of the center chassis of the microphone.

Unity Script and Audio Download
Download a zip file containing a Unity 3D script controller for playback of Omni Pro binaural tracks, as well as example audio files recorded by the Omni Binaural microphone.

Click HERE to download the Unity 3D script controller.

Outputs
The output of the Omni Pro binaural mic is a set of four 5-pin XLR connectors. Each connector is associated with the ears to the respective left and right. You can use the splitter cables (included) to break out the left/right signals to connect to your 8-channel preamp, or to 4 individual audio recorders. The outputs require 48V phantom power.

Cable
Every Omni Pro microphone comes with four (4), 5-pin to dual 3-pin XLR splitter cables providing a total 8 XLR outputs. The cables are 10ft in length.

Case
Every Omni Pro microphone comes with a custom made, hard shell carrying case for easy transport and safe storage.

Shipping, Fulfillment & Delivery
We are a small company and strive to fulfill orders as quickly as possible. During busy times, please allow up to several business days for order fulfillment. International Shipments (delivery address outside the U.S.) may be subject to import duties, value added taxes (VAT), and long customs clearance times. Tariff rates vary from country to country. 3Dio does not collect VAT on behalf of the customer. 3Dio is not responsible for payment of import taxes. Please check with your local customs agency for rates and more information.

Specifications
Dimensions: 7.76" x 7.76" x 5.12" | 197mm x 197mm x 130mm (WxDxH)
Weight: 3.62 lbs | 1640g

Microphone Specifications
Directional Pattern	Omnidirectional
Cartridge Type	Pre-polarized condenser
Frequency Range	20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz
Sensitivity, nominal, ±3 dB at 1 kHz	20 mV/Pa; -34 dB re. 1 V/Pa
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL)	71 dB(A)
Total harmonic distortion (THD) (Bare mic without ears)	126 dB SPL RMS, 129 dB SPL peak
Dynamic range	Typ. 106 dB
Max. SPL, peak before clipping	134 dB
Output impedance	30 - 40 Ω
Power supply (for full performance)	Min. 5 V - max. 50 V. 48 V phantom power ±4 V for full performance
Microphone diameter	5.4 mm (0.21 in)
Temperature range	-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)	Up to 90%
